The Simplest Way to Smart Building Automation
The Miniserver Go is ideal for retrofit and renovation projects, offering seamless control and intelligent automation across various applications—from private homes to commercial buildings and unique installations.
Key Features
Loxone Air: Supports up to 128 Air devices
Loxone Link: Connects up to 30 Extensions
Technical Specifications
Power Supply:
4.4 – 5.25 VDC (via included micro USB power supply)
Product Dimensions:
90 × 90 × 20 mm
3.54 × 3.54 × 0.79 inches (L × W × H)

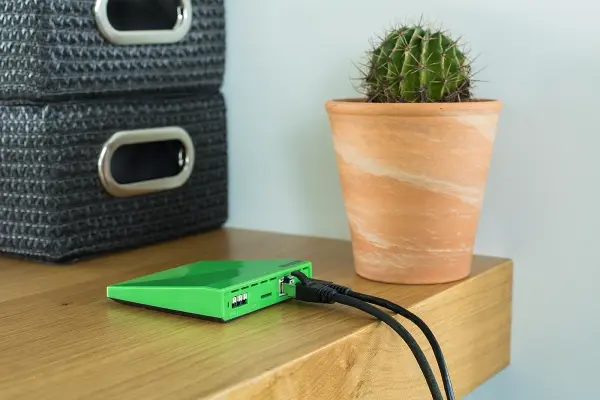

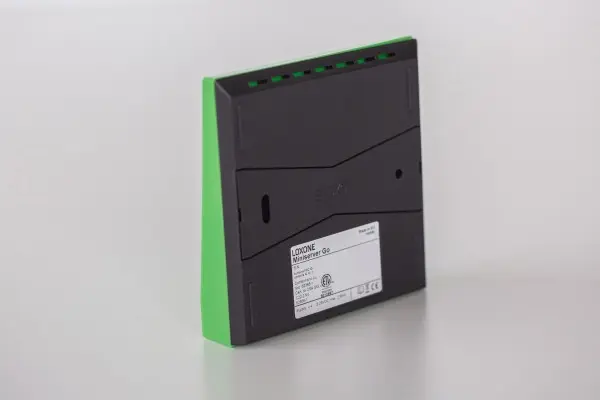

Miniserver Go
Miniserver Go – Technical Specifications
Electrical Data
-
Power Supply:
4.4 – 5.25 VDC (via included micro USB power supply) -
Power Consumption:
Typical: 0.94 W
Maximum: 2.65 W -
Power Loss at Max Load:
2.65 W -
Operating Temperature:
0 – 40°C / 32 – 104°F -
Power Reserve (Internal Clock):
64 hours
Interfaces
-
Loxone Air:
-
868 MHz (SRD Band Europe), 4 channels
-
Max. Power: 15.1 mW e.r.p.
-
-
915 MHz (ISM Band Region 2), 10 channels
-
Max. Power: 13.2 mW
-
-
Internal antenna
-
-
Ethernet:
-
100 Mbps
-
Supports IPv4/IPv6
-
HTTPS, SSL/TLS
-
Protocols: TCP/IP, Modbus TCP, UDP
-
-
Loxone Link:
-
Connects up to 30 Extensions
-
Ambient Conditions
-
Humidity:
Max. 95% r.H. (non-condensing) -
Ingress Protection:
IP20
Connections
-
Wire Cross-Section (Loxone Link):
0.2 – 1.5 mm² / AWG24 – AWG16 -
Stripping Length (Loxone Link):
8 mm / 0.31" -
Temperature Resistance (Loxone Link):
-40 – 105°C / -40 – 221°F -
Connector Types:
-
Loxone Link: –
-
Micro USB Connector: Micro USB 2.0 Type B
-
Product Characteristics
-
Color:
Green (RAL 6018) -
Finish:
Glossy
Weight & Dimensions
-
Total Weight:
290 g -
Product Dimensions:
90 × 90 × 20 mm
3.54 × 3.54 × 0.79 in (L × W × H) -
Packaging Dimensions:
94 × 101 × 95 mm
3.70 × 3.98 × 3.74 in (L × W × H)
Certificates & Compatibilities
-
✅ CE Certification
-
✅ UKCA Certification
-
✅ CB Certification
-
✅ BACnet BTL Certified
-
✅ Works with Apple Home
-
✅ Intertek ETL
