Here's a nicely formatted description of the Loxone LED Pendulum Slim RGBW:
Loxone LED Pendulum Slim RGBW: Elegant & Versatile Lighting
The Loxone LED Pendulum Slim RGBW is a sophisticated pendant light that seamlessly blends colored light with warm white illumination. To control and dim this versatile fixture, you'll need a PWM dimmer, such as the Loxone RGBW 24V dimmer.
Features
  • Timeless, elegant design: Complements any modern interior.
  • Gentle dimming behavior: Creates the perfect ambiance with smooth transitions.
  • Unique lighting architecture: Delivers distinct and appealing light distribution.
  • Flexible application options: Adaptable for various spaces and uses.
Technical Details
  • Power Supply: 21.6 to 25.2VDC
  • Beam Angle:
    • RGB: 120°
    • Warm White: 38°
  • Color Temperature: Typical 3000K (warm white)
  • Luminous Flux: Typical 975lm (warm white)
  • Product Dimensions:
    • Luminaire: 300 x 60mm (11.81 x 2.36 inches) (Length x Diameter)
    • Canopy: 60 x 80mm (2.36 x 3.15 inches) (Length x Diameter)

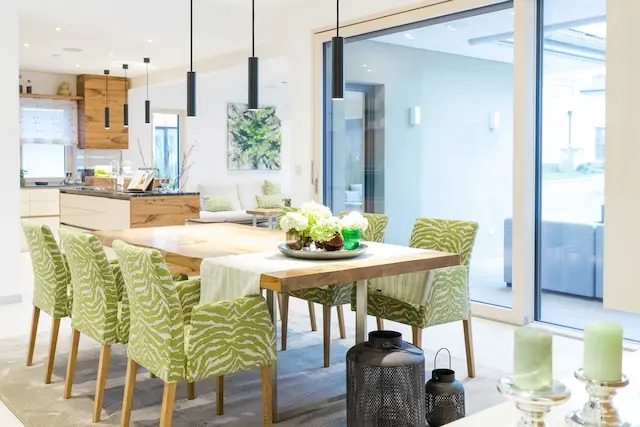

LED Pendulum Slim RGBW PWM Anthracite

SKU: 364215375135191
₹24,448.00Price
Color
Quantity

Loxone LED Pendulum Slim RGBW: Detailed Specifications

Electrical Data

  • Power Supply: 21.6 ... 25.2VDC
  • Power Consumption:
    • Red: 1.5W
    • Green: 4.8W
    • Blue: 1W
    • Warm white: 12W
    • Max. Total: 12W
  • Dimming Range: 0 ... 100%
  • PWM Frequency: 123 ... 400Hz
  • Energy Efficiency (EU) 2017/1369: F

Ambient Conditions

  • Temperature: -40 ... 55°C / -40 ... 131°F
  • Humidity: Max. 95% r.H. (non-condensing)
  • Ingress Protection: IP20

Connections

  • Wire Cross-section:
    • Connection Cable: 0.75mm² / AWG18
    • Connection Terminals: 0.14 … 4mm² / AWG24 … 12
  • Stripping Length:
    • Connection Cable: 5mm / 0.2"
    • Connection Terminals: 11mm / 0.43"
  • Temperature Resistance:
    • Connection Cable: Max. 70°C / 158°F
    • Connection Terminals: Max. 85°C / 185°F
  • Connection Diagram: [Refer to Connection Diagram]

Light Properties

  • Colour Temperature: Typ. 3000K (warm white)
  • Luminous Flux: Typ. 975lm (warm white)
  • Colour Rendering Index (CRI): Min. 90 (R9 min. 50)
  • Beam Angle:
    • RGB: 120°
    • Warm White (WW): 38°
  • Unified Glare Rating (UGR): <19

Product Characteristics

  • Colours:
    • Anthracite: RAL 7016 - Part No. 100275
    • White: RAL 9003 - Part No. 100274
  • Material: Aluminium and Plastic
  • Finish: Matte
  • Max. Drop from Ceiling to Lower Edge of Pendant: 2m

Weight & Dimensions

  • Total Weight: 1150g
  • Product Dimensions:
    • Luminaire: 300 x 60mm / 11.81 x 2.36 inches (Length x Diameter)
    • Canopy (Baldachin): 60 x 80mm / 2.36 x 3.15 inches (Length x Diameter)
  • Product Dimensions Drawing: [Refer to Product Dimensions Drawing]
  • Pack Size: 394 x 253 x 83mm / 15.51 x 9.96 x 3.27 inches (Length x Width x Height)
